比亚迪F3制动器制动力测试装置的设计

来源:56doc.com  资料编号:5D4975 资料等级:★★★★★ %E8%B5%84%E6%96%99%E7%BC%96%E5%8F%B7%EF%BC%9A5D4975
资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用. 帮助
资料介绍

比亚迪F3制动器制动力测试装置的设计(12300字)
摘 要:汽车制动性能的检测,作为机动车安全检测中最重要项目之一,一直是大家关注的焦点。制动检测设备怎样才能客观准确地检测出汽车的制动性能,使其更好地服务于社会、造福于人民,与我们的被检对象机动车的现状是分不开的。对制动器制动力的检测,可以了解和掌握车辆的制动系统各主要部件是否存在故障和问题,对行车安全起到重要作用。本设计是以比亚迪F3为实例设计了一种直接检测制动器制动力的装置。经过计算,校核,验证,表明本设计是一种通用,方便,成本低,易于推广的检测仪器。经专利,文献查新表明,设计的检测装置在结构措施方面具有创新性,主要表现在夹具,省力装置的改进和创新方面,同时该装的机构原理和检测方法可以应用到其他车型上。
关键词:比亚迪F3 ;制动器 ;测试仪 ;液压

The Design of BYD F3 Frictional Braking Force System Test Device
Abstract: Detection of vehicle braking performance, vehicle safety inspection as one of the most important has been the focus of attention. Brake testing equipment how to objectively and accurately detect vehicle braking performance, to better serve the community for the benefit of the people, and our vehicle was seized the status of the object are inseparable. Braking force of brake testing, we can understand and master the vehicle braking system faults and major parts of the existence of the problem, play an important role on driving safety. The design is based on the example of BYD F3 was designed to directly detect a power brake system of the device. After calculation, verification, validation, show that the design is a versatile, convenient, low cost, easy-to promote the detection equipment. The patent literature search of new shows that the structural design of the detection device innovative measures, mainly in the fixture, the improvement of labor-saving devices and innovation, while the principle of the equipment and detection methods institutions can be applied to other models.

Key word :  BYD F3; Brake; Tester; Hydraulic.

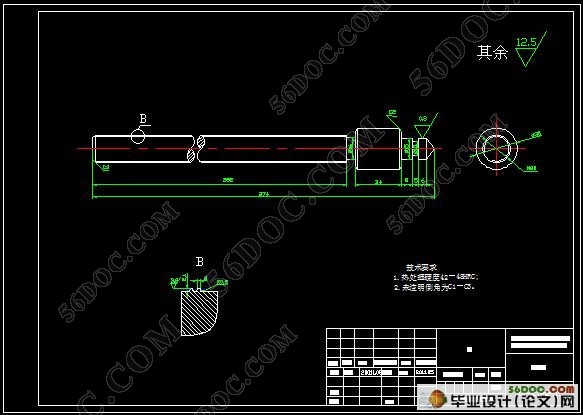

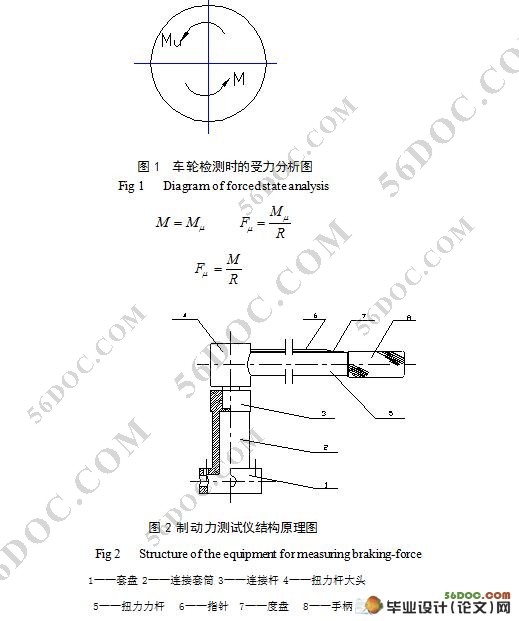

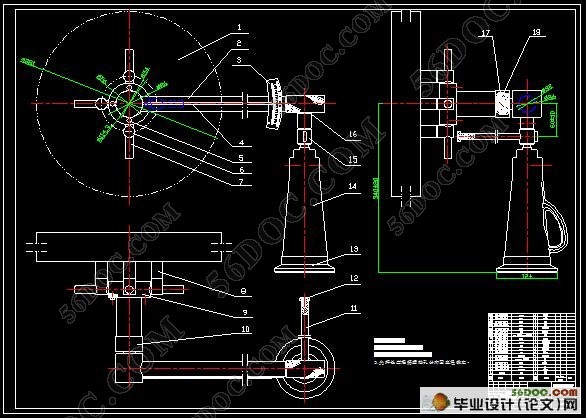

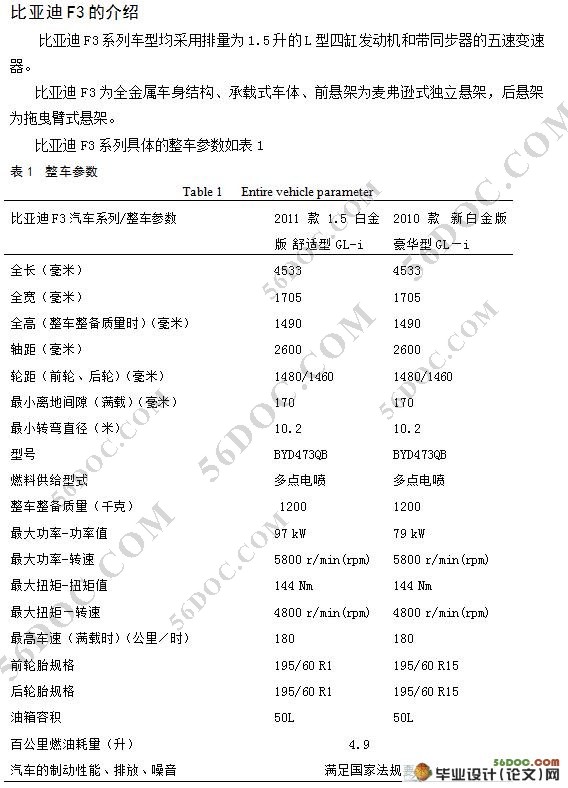

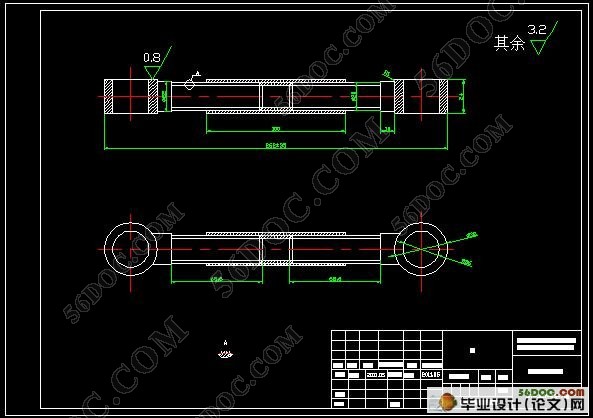

比亚迪F3的介绍
比亚迪F3系列车型均采用排量为1.5升的L型四缸发动机和带同步器的五速变速器。
比亚迪F3为全金属车身结构、承载式车体、前悬架为麦弗逊式独立悬架,后悬架为拖曳臂式悬架。
